H3C WA1208E-GP-H20 瘦AP刷胖AP的过程详解

来源:未知 时间:2013-09-04 10:31


  1、先下载正确的BIN文件,可在官网上搜软件下载,注意型号H20是增强型的(WA1208EH20-CMW520-R1115P15-FAT,需要H3C账号才可下载)。

  2、将WA1208EH20-CMW520-R1115P15-FAT.bin改成wa1208h20_fat.bin(一个字都不能错)

  3、将文件放到TFTP服务器软件的根目录中

  4、加电启动AP,ctl+b进入BOOTWARE模式

  ======================================================

  |<1> Boot System |

  |<2> Enter Serial SubMenu |

  |<3> Enter Ethernet SubMenu |

  |<4> File Control |

  |<5> Modify BootWare Password |

  |<6> Skip Current System Configuration |

  |<7> BootWare Operation Menu |

  |<8> Clear Super Password |

  |<9> Storage Device Operation |

  |<0> Reboot |

  ============================================================================

  Enter your choice(0-9): 3

  5、选择3,进入以太网子选项

  ====================================================

  |Note:the operating device is flash |

  |<1> Download Application Program To SDRAM And Run |

  |<2> Update Main Application File |

  |<3> Modify Ethernet Parameter |

  |<0> Exit To Main Menu |

  | |

  ============================================================================

  Enter your choice(0-3): 3

  6、选择3,配置以太网选项

  ====================================================

  |Note: '.' = Clear field. |

  | '-' = Go to previous field. |

  | Ctrl+D = Quit. |

  ============================================================================

  Protocol (FTP or TFTP) :tftp

  Load File Name :wa1208h20_fat.bin

  Target File Name :wa1208h20_fat.bin

  Server IP Address :192.168.1.4

  Local IP Address :192.168.1.100

  Gateway IP Address :192.168.1.1

  (若默认不是,直接在后面输入正确的数值,回车,然后回到主菜单重启)

  7、选择4,查看文件

  ==============================================================

  |Note:the operating device is flash |

  |<1> Display All File(s) |

  |<2> Set Application File type |

  |<3> Delete File //如果空间不够,用此选项来删除文件 |

  |<0> Exit To Main Menu |

  ============================================================================

  Enter your choice(0-3): 1

  Display all file(s) in flash:

  'M' = MAIN 'B' = BACKUP 'S' = SECURE 'N/A' = NOT ASSIGNED

  ============================================================================

  |NO. Size(B) Time Type Name |

  |1 232 Jan/11/2009 19:55:25 N/A private-data.txt |

  |2 1034 Jan/11/2009 19:55:48 N/A startup.cfg |

  |3 6976832 Aug/08/2008 20:00:00 M wa1208h20_fat.bin |

  |4 7387 Jan/11/2009 19:55:31 N/A config.cwmp |

  |5 1665 Jan/11/2009 19:55:43 N/A system.xml |

  ============================================================================

  8、现在可以用TFTP来灌IOS了,主菜单选择3,再选择2开始升级

  9、升级结束后,选择9确认一下启动的硬件为FLASH

  ============================================================

  |<1> Display All Available Nonvolatile Storage Device(s) |

  |<2> Set The Operating Device |

  |<3> Set The Default Boot Device |

  |<0> Exit To Main Menu |

  ============================================================================

  Enter your choice(0-3): 3

  Please set the default device:

  ============================================================================

  |Note:the default device is flash |

  |NO. Device Name File System Total Size Available Space |

  |1 flash VFS 7152640 158720 |

  |0 Exit |

  ============================================================================

  Enter your choice(0-1):1

  10、回到主菜单,选择1,启动系统

  11、加载镜像进入到正常的命令行界面后,设置启动文件

  boot-loader file flash:/wa1208h20_fat.bin (这里必须要是这个文件名)

  reboot (重启后,正常启动则算是成功了)

  12、设置WEB界面登录的用户名和密码

  sys

  ip http enable

  local-user admin

  password simple admin

  service-type telnet

  authorization-attribute level 3

  quit

  user-interface vty 0 4

  authentication-mode scheme

  quit

  save

  (这里的命令最好一字不差地才可顺利登录)

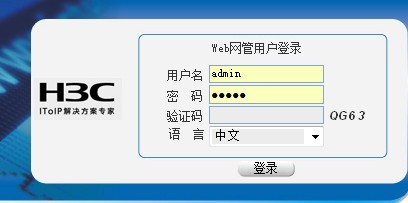

  13、WEB登录界面
